Not Your Average Shop

PINECIL TS100 TS180P Power Supply and Battery Pack

PINECIL TS100 TS180P Power Supply and Battery Pack

Regular price $29.99
Regular price Sale price $29.99
Sale Sold out
Shipping calculated at checkout.
Options

Need a Power Supply for PINECIL, TS100, TS180P ?



Option 1:  AC to DC power supply

  • Output Max: 65W ~ 20V 3.25A
  • Input Volt Range: 110-240V
  • Connector Size: USB Type-C ( USB-C )
  • Works for PINECIL only.
  • Will not work for TS100 or TS180P
  • Multi Use- charge laptop etc
    • 20V 3.25A/15V 3A / 9V 2A (sensing)



Option 2:  Build Your Own Portable Battery Pack

The second option is a portable battery. Will work for PINEcil, PINEcil V2, TS100, and TS180P.

Allows you to solder free of the outlet. Purchase the hard case from this website. Then follow our buying guide to purchase the battery pack and required cables below.  The battery charges in approximately 1 hour and provides hours of un-tethered soldering with a single charge.

No need to worry about what is in the way of the cord. It is perfect for throwing in your bag and taking into the field. Or cleaning up your work area with tether free soldering. Works with PINECIL, TS100, and similar soldering irons. Battery should be unplugged from soldering iron when not in use.

All links are included to complete this build yourself! The links for the entire build can also be accessed by clicking the photos. The battery case is purchased as Option 2 on this site.



Soldering Iron

PINECIL with tip. This spart soldering iron has adjustable temp as well as motion sensing to put in sleep mode. It can be powered with Battery Pack or chargers power supply with adapter.
https://amzn.to/3RIK9Ut



Battery Pack

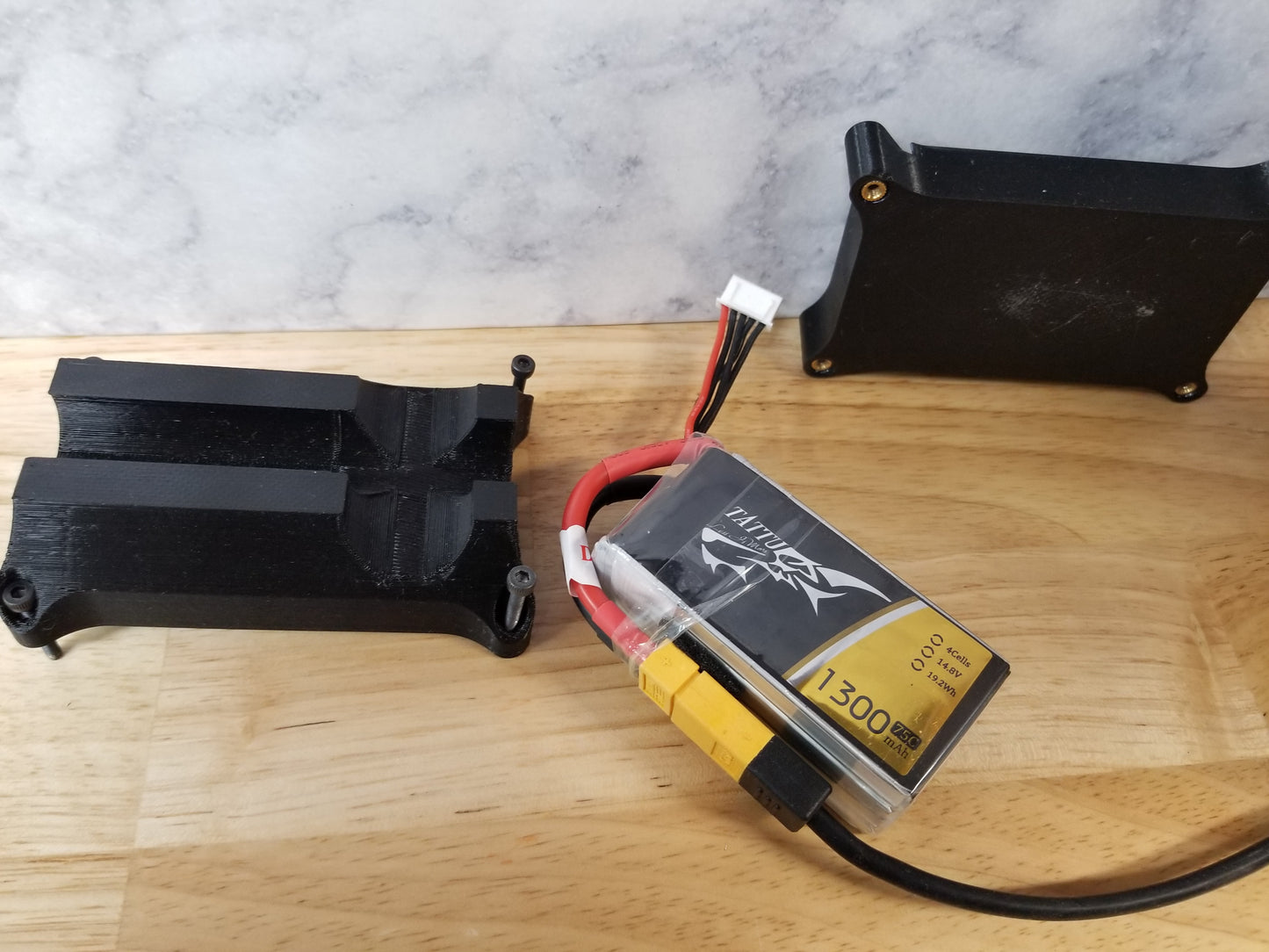

The top of the battery pack case was designed for simple storage of the soldering iron during and after use. The battery pack contains a 4S LiPo Battery. Case needs to be purchased from this site or our etsy store. Inside of the case the battery is connected to the barrel jack( DC5525 )needed for the Pinecil and TS100 battery below.
https://amzn.to/3Vb0RhY



Battery To Soldering Iron Cable

Cable connected inside of the batteries protective case.

https://amzn.to/3V7Pwzg



Charger

LiPo balance charge that charges the lipo above. The power supply used for this charger can also power the pinecil directly, but you will need to purchase the power cable adapter. Available in "Advanced" packages.
https://amzn.to/3fDEscW

https://amzn.to/3fMgQ63



Voltage Monitor

Not necessary for PINECIL. For TS100, plug this in while soldering, to monitor the battery voltage. Beeps when battery is approaching its minimum voltage, CHARGE TIME! Available in Advanced Packages.
https://amzn.to/3RGWJDM





Purchase Guide Options

Standard $51

      • Battery Pack & Case
      • Charger
      • Battery To Soldering Iron 5.5mm X 2.5mm Barrel Jack

Advanced $61

      • Battery Pack & Case
      • Charger
      • Battery To Soldering Iron 5.5mm X 2.5mm Barrel Jack
      • Voltage Monitor

Advanced W/ Pinecil $91

      • Battery Pack & Case
      • Charger
      • Battery To Soldering Iron 5.5mm X 2.5mm Barrel Jack
      • Voltage Monitor
      • Pinecil

Outside of the US? Purchase through Etsy for best shipping rates.

https://www.etsy.com/NotYourAvgShopEtsy/listing/1101751504/pinecil-battery-pack?utm_source=Copy&utm_medium=ListingManager&utm_campaign=Share&utm_term=so.lmsm&share_time=1673028458989

Battery Details:
4S (14.8V)
1300mAh
75C
DC5525 Barrel DC Jack.

LiPo batteries are found in everything, cellphone to laptops. However, they can still be dangerous. Not Your Average Shop LLC is not guaranteeing safe operation. By purchasing anything from this website or following any suggestions, you accept all liability for safe operation. Normal inspection of battery is recommended. which should never be discharged below 12V, or damage can occur. PINECIL soldering iron has a built in feature designed specifically for this batter pack. Simply select the "4S" option in the menus, and it will turn off when needing charged. If not using for PINECIL, such as TS100, it is suggested to purchase the optional voltage meter with audible alarm when approaching recharge voltage.
